X-Ray View of the CAD drawing

3D Printed Solenoid Adapter

This is the latest project for my start-up company Moderbacher Additive.  The customer needed a part to connect a solenoid to a button on a regulator.  I designed the printed part using the two provided components and a description of the orientation they needed to be in.  The CAD work was done using Onshape and the whole process took less than four hours (design, drafting and printing).

3D Printed Solenoid Adapter

This is the latest project for my start-up company Moderbacher Additive.  The customer needed a part to connect a solenoid to a button on a regulator.  I designed the printed part using the two provided components and a description of the orientation they needed to be in.  The CAD work was done using Onshape and the whole process took less than four hours (design, drafting and printing).

X-Ray View of the CAD drawing

X-Ray View of the CAD drawing

My Printrbot Plus finishing up the print.

My Printrbot Plus finishing up the print.

Top view of the printed part.

Top view of the printed part.

Bottom view

Bottom view

The Regulator, with a generic interface for a solenoid.

The Regulator, with a generic interface for a solenoid.

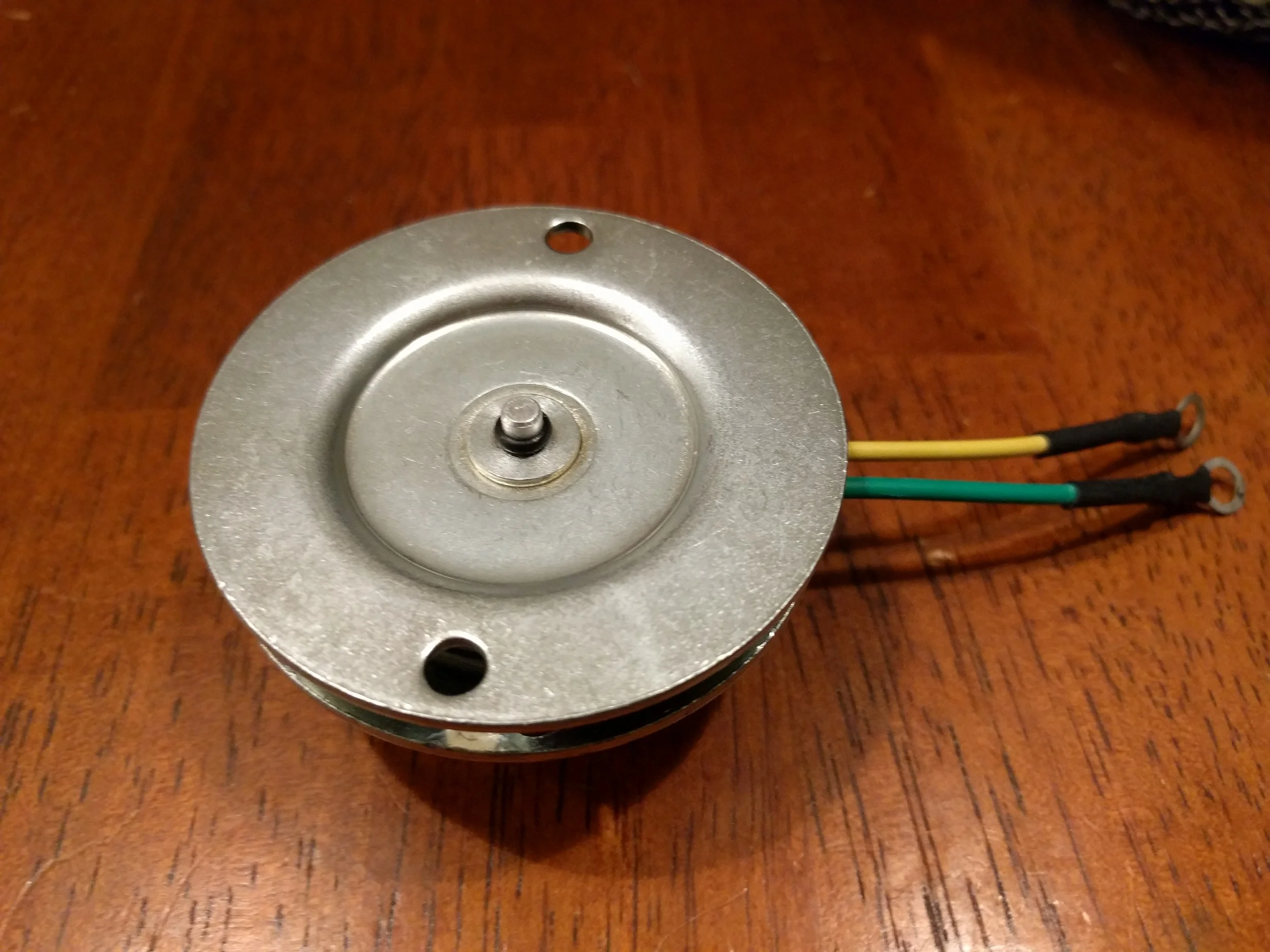

Solenoid bottom

Solenoid bottom

 Solenoid top

Solenoid top

Printed part connected to Regulator

Printed part connected to Regulator

Another Angle

Another Angle

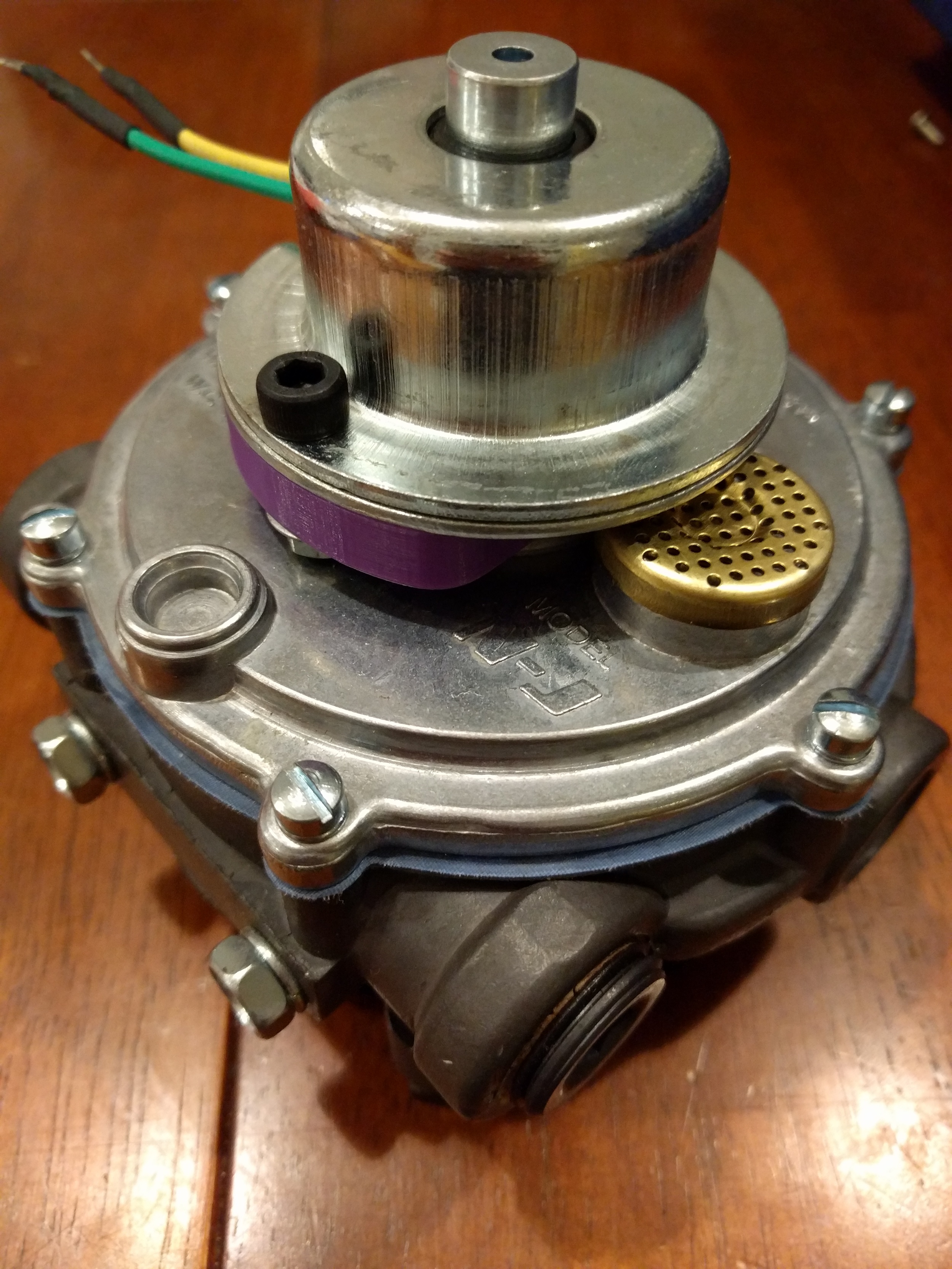

The Full Assembly.

The Full Assembly.

Another angle of the full assembly

Another angle of the full assembly
